目录

linux同步身份认证

ldap 在linux上同步身份认证

安装ldap及其管理器环境

参考compose文件

安装完成后,可以看到管理界面 https://raw.githubusercontent.com/kengerlwl/kengerlwl.github.io/refs/heads/master/image/4ecf958df4cd734532cd81636478dda9/97410357ff4fb49376f6f07bf569c866.png

具体如何进行账号添加,小组管理可以翻阅相关文档。这里不作展开。

在linux上配置nslcd连接ldap

首先要安装相关库

1
yum install nss-pam-ldapd

如果不确定本地是否能够连通服务器ldap,可以用ldap的客户端进行连通性测试 yum install nss-pam-ldapd openldap-clients openldap -y

测试ldap服务连通性

1
ldapsearch -x -H ldap://110.40.*.*:389 -b dc=lwl,dc=com -D "cn=admin,dc=lwl,dc=com" -w your_password

注,如果是Ubuntu,那么直接安装

1
apt-get install libnss-ldapd libpam-ldapd

linux本地配置相关文件

vi /etc/nsswitch.conf

关键是在这三组后面添加ldap

1
2
3
passwd:     files sss ldap
shadow:     files sss ldap
group:      files sss ldap

修改/etc/nslcd.conf 文件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# The user and group nslcd should run as.
uid nslcd
gid ldap


uri ldap://110.40.*.*



base dc=lwl,dc=com
binddn cn=admin,dc=lwl,dc=com
bindpw your_password
ssl no
tls_cacertdir /etc/openldap/cacertsorg

修改/etc/openldap/ldap.conf文件

1
2
3
4
5
6
7
TLS_CACERTDIR /etc/openldap/cacerts

# Turning this off breaks GSSAPI used with krb5 when rdns = false

SASL_NOCANON    on
URI ldap://110.40.*.*/
BASE dc=lwl,dc=com

为了解决新建用户后没有home目录的问题。

1
2
3
4
5
# 在su的时候新建home目录。配置vi /etc/pam.d/system-auth 新增一行配置
session required pam_mkhomedir.so skel=/etc/skel umask=0022

# 在ssh的时候新建home目录, 在/etc/pam.d/sshd后面新增一行
session    required     pam_mkhomedir.so

配置完后,启动相关程序

1
2
systemctl restart nslcd
systemctl restart sshd

配置自动同步authconfig,不然密码认证可能不过

安装yum install authconfig

运行:

1
authconfig --enableldap --enableldapauth --ldapserver="110.40.*.*" --ldapbasedn="dc=lwl,dc=com" --update

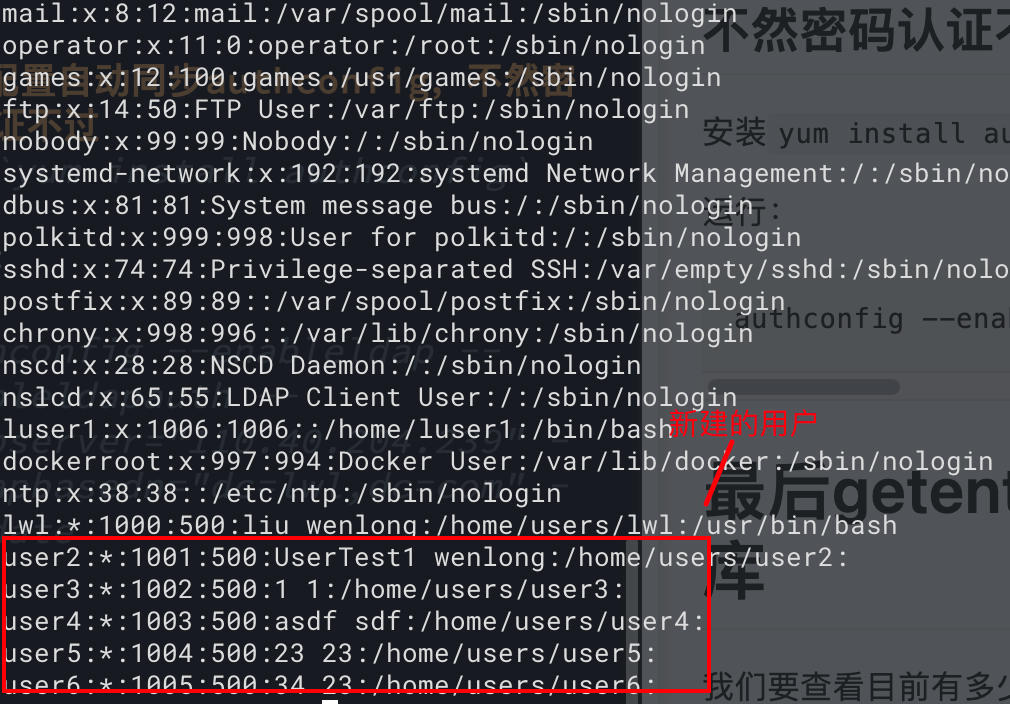

最后getent查看数据库

我们要查看目前有多少用户或者用户组需要用getent命令这个命令可以查看当前的所有信息。包括在线的ldap的数据库里面的用户。 getent passwd

https://raw.githubusercontent.com/kengerlwl/kengerlwl.github.io/refs/heads/master/image/4ecf958df4cd734532cd81636478dda9/c439758e4c46329ff2b1d974f379f9fd.png

解决一些后序问题

  • 解决一些后序问题

    • ssh连接用户home目录没有的问题
    • 管理用户权限管理的问题。 例如要执行docker命令,但是普通用户没有权限。

    solution:

    写一个脚本去监听所有用户,如果当前用户没有home目录,就新建。然后针对每个用户,在.bashrc文件里面对sudo进行alias别名封装一部分docker命令。

    bashrc_demo文件

    1
    2
    3


    # 封装docker命令
    alias docker="sudo /usr/bin/docker"


    bash_profle_demo文件

    因为如果仅仅新建.bashrc 文件,那么ssh进去以后并不会一定执行,加入该文件能够ssh后自动执行bashrc文件。

    1
    2
    3
    4
    5
    6
    7

    # if running bash
    if [ -n "$BASH_VERSION" ]; then
        # include .bashrc if it exists
        if [ -f "$HOME/.bashrc" ]; then
            . "$HOME/.bashrc"
        fi
    fi


    shell 脚本

    • 检查所有用户目录是否创建,没有就建立
    • 检查所有用户的.bashrc等配置文件是否创建
      • 没有就创建demo
      • 有的话就比对我们需要缝合进去的命令,如果缺少就加入(这样可以当个人修改了一些自己需要的bashrc配置后,可以继续在上一个人的基础上添加公共配置)
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58

    #!/usr/bin/bash
    while(true)
    do
        # 睡一秒
        sleep 1

        # 如果后序匹配特征变了,可以适当改变grep的匹配规则
        home_drs=$(getent passwd  | grep /home | awk -F: '{print$6}')
        #echo $home_drs
        for home_dr in $home_drs;
        do

            #echo $home_dr

            #判断用户文件夹是否存在
            if [ ! -d "$home_dr" ]; then
              mkdir $home_dr
              echo "创建文件夹" $home_dr
            fi


            #判断bash_profile配置文件是否存在
            file_pre="$home_dr/.bash_profile"
            if [ ! -f "$file_pre" ];
             then
              cp bash_profile_demo "$file_pre"
              echo "创建文件" "$file_pre"
            fi

            #判断bashrc配置文件是否存在
            file="$home_dr/.bashrc"
            #file=/home/liuwenlong/.bashrc
            if [ ! -f "$file" ];
             then
              cp bashrc_demo "$file"
              echo "创建文件" $file
             else
              echo 'file存在'
              # 选择去除空行和注释后的命令,判断是否需要加入
              cat bashrc_demo | grep -v '#' | grep -v '^$' | while read line
              do
                        #echo $line

                        # 判断匹配函数,匹配函数不为0,则包含给定字符
                        if [ ! `grep -c "$line" $file` -ne '0' ];
                        then
                            echo "没有命令行 $line ,补上 "
                            echo "$line" >> $file

                        fi
              done

            fi

        done


    done


    sudoers文件

    1
    2

    # ldap组执行权限开放 docker 命令
    %group1  ALL=(ALL)      NOPASSWD:/usr/bin/docker


    ref

    OpenLDAP同步linux用户 linux nslcd服务,

    CentOS 6通过ldap集成AD域账号(nslcd方式)

    配置Linux使用LDAP用户认证的方法
