服务器挂载其他云盘,例如googledrive,onedrive

目录

服务器可以挂载很多云网盘

用到的工具Rclone

可以支持很多的云盘,不仅仅是google,还有onedrive等。

安装相关库

1
2
3
4
curl https://rclone.org/install.sh | sudo bash


yum install fuse

用rclone登录云盘配置

1
rclone config

out

1
2
3
4
5
2020/03/04 17:17:28 NOTICE: Config file "/root/.config/rclone/rclone.conf" not found - using defaults
No remotes found - make a new one
n) New remote
s) Set configuration password
q) Quit config

选择n,建立新的远程连接

然后输入名字。这个可以随便自己填。

然后有:

https://raw.githubusercontent.com/kengerlwl/kengerlwl.github.io/refs/heads/master/image/ddc552e2fb60427a31c6b3d28ba21944/69b94b1ad4cfc3d4acb3f2f4f190bf2a.png

对于这个id以及secret,输入enter跳过就行。

然后要选择Rclone对Google Drive网盘文件的操作权限:选择1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
Option scope.
Scope that rclone should use when requesting access from drive.
Enter a string value. Press Enter for the default ("").
Choose a number from below, or type in your own value.
 1 / Full access all files, excluding Application Data Folder.
   \ "drive"
 2 / Read-only access to file metadata and file contents.
   \ "drive.readonly"
   / Access to files created by rclone only.
 3 | These are visible in the drive website.
   | File authorization is revoked when the user deauthorizes the app.
   \ "drive.file"
   / Allows read and write access to the Application Data folder.
 4 | This is not visible in the drive website.
   \ "drive.appfolder"
   / Allows read-only access to file metadata but
 5 | does not allow any access to read or download file content.
   \ "drive.metadata.readonly"
scope> 1

然后是一些设置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# 一
Edit advanced config?
y) Yes
n) No (default)
y/n> n

# 二
Use auto config?
 * Say Y if not sure
 * Say N if you are working on a remote or headless machine

y) Yes (default)
n) No
y/n> n

关键;然后会出现一个需要到网页登录验证的连接。用nginx做跨越访问代理到公网。

1
2
3
2022/08/31 23:17:42 NOTICE: If your browser doesn't open automatically go to the following link: http://127.0.0.1:53682/auth?state=-y3AQQerN0TGxaYaTe7TIQ
2022/08/31 23:17:42 NOTICE: Log in and authorize rclone for access
2022/08/31 23:17:42 NOTICE: Waiting for code...

对于http://127.0.0.1:53682/auth?state=-y3AQQerN0TGxaYaTe7TIQ 代理到公网访问登录。

后面会出现一些设置选项,基本选择yes。然后可以退出了。

挂载

1
rclone mount GoogleDrive: /google --allow-other --allow-non-empty --vfs-cache-mode writes

解释:

rclone mount 我之前输入的云盘名字: 本地被挂载的路径–allow-other –allow-non-empty –vfs-cache-mode writes

挂载onedrive

1
rclone mount one_drive_test1: /onedrive --allow-other --allow-non-empty --vfs-cache-mode writes

查看

1
df -h

https://raw.githubusercontent.com/kengerlwl/kengerlwl.github.io/refs/heads/master/image/ddc552e2fb60427a31c6b3d28ba21944/750110b64a59b0a23bc6cf808c7f6e1a.png

可以正常访问。

关于挂载onedrive云盘。

我这里用的是从pdd上买的5T永久免费盘。 基本流程和上面是一致的,但是要注意:

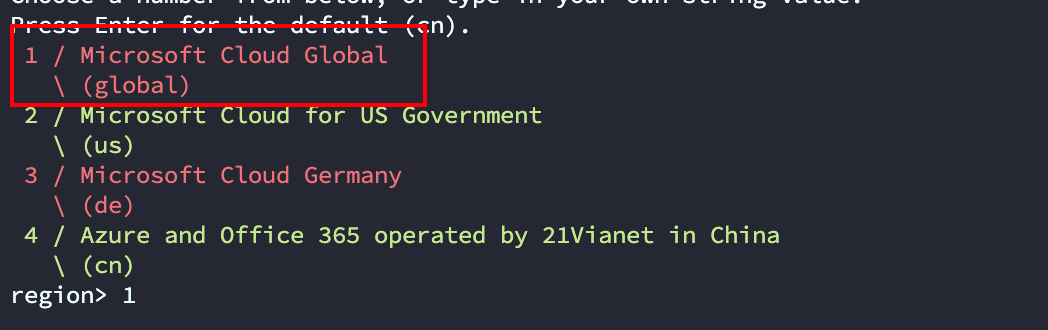

  • 这个要选择第一个

  • https://raw.githubusercontent.com/kengerlwl/kengerlwl.github.io/refs/heads/master/image/ddc552e2fb60427a31c6b3d28ba21944/4efac40a129a35d631dd81cb33b5acb3.png
